Fully Auto Vertical L Bar Sealer Heat Shrink Wrapping Machine
Basic Information
| Model NO | ZSL-6575CL + T-5025 | | Type | POF Shrink Film Machine |
| Heating Mode | Stainless Steel Heating | Power | 3.3 KW + 16 KW |
| Max Packing Size | L+H≤700mm W+H≤520mm | Sealing Height | H≤220mm |
| Weight(N/G) | 820 / 760kgs | External Gas Source | 6-8 KG / M2 |
| Shrink Film | POF / PE | Dimension(L*W*H) | 2160*1690*1380mm |
| Horizontal Blade Length | 650MM | Longitudinal Blade Length | 750MM |
| Speed | 30Mters / Minute | Applications | Book, Carton, Box, Ladder |
| Transport Package | Wooden Box | Specification | Vertical L Bar Sealing |
| Certification | CE | Trademark | ZOSN |
| Origin | Guangdong, China | HS Code | 8422303090 |
| Production Capacity | 50 Sets / Month | Customization | Logo / Color/ Size / Voltage / Material / Parts Brand |
Product Features
Beautiful machine, Stable quality, Safety,energy saving, patented products, domestic initiative, application to the POF PVC PP film thermal shrink packaging effect is perfect.
1.Appearance and knot design in accordance with national standards, the fuselage uses fingerprint resistant sheet production after spray treatment.
2.Control panel using programming system, 12V DC input , button switch , digital display.
3. Transmission using 24v DC Motor speed control using variable frequency technology 0-9 file adjustment.
4.The conveyor belt can be used wire mesh belt, chain roller, Teflon mesh belt three.
5.Heating using 600W 220V far infrared quartz heating tube.
6.Temperature control using high precision intelligent temperature control system . up and down temperature independent regulation.
7.Hot air circulation using 220V 60W 2200 to the long axis motor with wind wheel.
8.The bracket can be disassembled , and the height of the bracket can be adjusted.
Product Description
| Model | ZSL-6575CL | T-6030 |
| Power | 3.3kw | 16kw |
| Power Supply | AC 220V 1PH 50Hz | AC 380V 3PH 50Hz |
| Max. Packing Size | L+H≤700mm W+H≤520mm H≤220mm | W400 × H200mm |
| Packing Speed | 8-30 Pcs / min. | 0~30m / min. |
| External Air Source | 6-8kg / cm2 | / |
| Shrink Film | POF / PE | POF / PE / PVC |
| Machine Size L×W×H | 1960 × 1590 × 1320mm | 2000 × 1050 × 1180mm |
| G./N. Weight | 820 / 760kgs | 420 / 360kgs |
Product Display
Operator Panel: Aesthetic and minimalist design, Chinese and English notes, Digital temperature controller can control the temperature arbitrarily, HMI supports all languages and can switch between multiple. languages simultaneously for suit different operators. Various parameters can be easily set through HMI.
Thermal cycle visual shrink packaging tunnel keeping constant temperature. Can be set different temperature to suit for different film, wind direction and speed also can be adjusted to
Packaging And Delivery
1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Port Guangzhou or Shenzhen
|
|

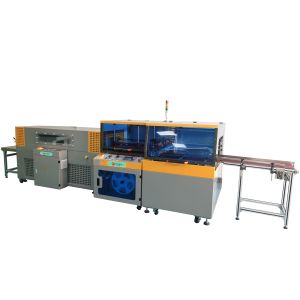

Fully Auto Vertical L Bar Sealer Heat Shrink Wrapping Machine Images
|
